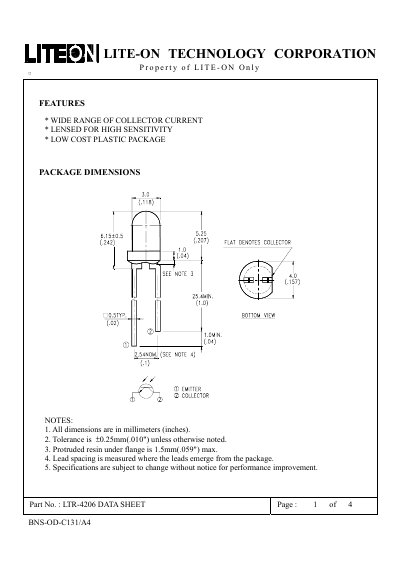

The LITE-ON LTR-4206 phototransistor data sheet provides electrical, optical, and mechanical specifications, ratings, and characteristic curves.
The LTR-4206 is a lensed, high‑sensitivity phototransistor offered in a low‑cost plastic package. The data sheet lists its key features, package dimensions, and absolute maximum ratings for safe operation.
Detailed electrical and optical characteristics are presented, including collector‑emitter breakdown voltage, dark current, on‑state collector current, rise/fall times, and typical performance curves under various test conditions.
| Power Dissipation | 100 mW |
|---|---|
| Collector‑Emitter Voltage (VCE) | 30 V |
| Emitter‑Collector Voltage (VEC) | 5 V |
| Collector Dark Current (ICEO) | 100 nA |
| On‑State Collector Current (IC(ON)) | 6.4 mA |
The maximum collector‑emitter voltage is 30 V.
The on‑state collector current is rated at 6.4 mA.
Maximum power dissipation is 100 mW and storage temperature range is -55°C to +100°C.
