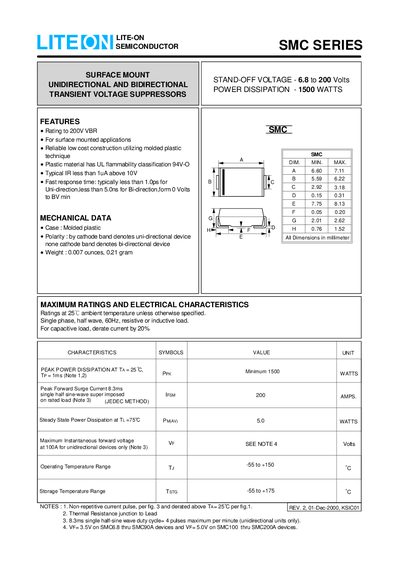

Lite-On SMC Series Surface Mount TVS Datasheet

SMC series data sheet, includes product characteristics, features, dimensions, packaging, temperature range, power and other information.

Brand: LITE-ON
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 50 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: EE2AE136BD0C78E2F31D7F5EB99F83B1
PDF: Lite-On SMC Series Surface Mount TVS Datasheet PDF

About this manual

The document provides specifications for the SMC Series Surface Mount Unidirectional and Bidirectional Transient Voltage Suppressors (TVS). These devices feature a stand-off voltage range from 6.8 to 200 Volts and a peak power dissipation of up to 1500 Watts, designed for surface-mounted applications.

What's inside

Features
Mechanical Data
Maximum Ratings
Electrical Characteristics
Rating and Characteristic Curves
Device Specifications Table

Specifications

Stand-Off Voltage Range	6.8 to 200 Volts
Peak Power Dissipation	1500 Watts
Operating Temperature Range	-55 to +150 °C
Storage Temperature Range	-55 to +175 °C

Frequently asked questions

What is the typical reverse leakage current?

The typical IR is less than 1uA above 10V.

How fast is the response time for unidirectional devices?

The response time is typically less than 1.0ns.

How do I identify a bidirectional device in the part number?

Add suffix 'C' or 'CA' after the part number to specify Bi-directional devices.
