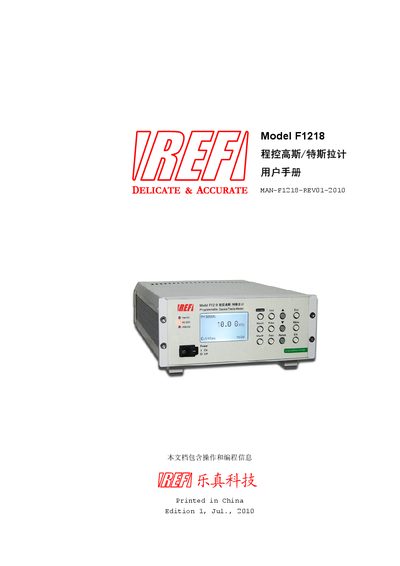

The manual provides safety information, installation steps, operation instructions, computer interface details, and specifications for the Lezhen Technology…
This user manual covers all aspects of the F1218 programmable Gauss/Tesla meter, including safety precautions, warranty and calibration services, and detailed product features. It guides users through unpacking, inspection, and proper installation of the instrument in both desktop and rack‑mount configurations.
The document also explains the front‑panel controls, measurement modes, range selection, trigger functions, and computer interface options (RS‑232C and USB‑232). Technical specifications such as input voltage, measurement accuracy, resolution, and environmental limits are listed, along with a comprehensive appendix of magnetic‑unit conversions and reference data. This manual is written in Chinese.
| Input AC Voltage (RMS Vac) | 209‑231 V (typical 220 V) |
|---|---|
| AC Frequency | 48‑60 Hz |
| Apparent Power | 20‑30 W |
| Display Resolution | 4‑2/3 digits |
| Number of Sensor Channels | 1 |
The instrument is classified as Safety Class 1 and is protected by a grounding terminal.
It operates on 220 V AC, 50‑60 Hz, with an apparent power consumption of 20‑30 W.
