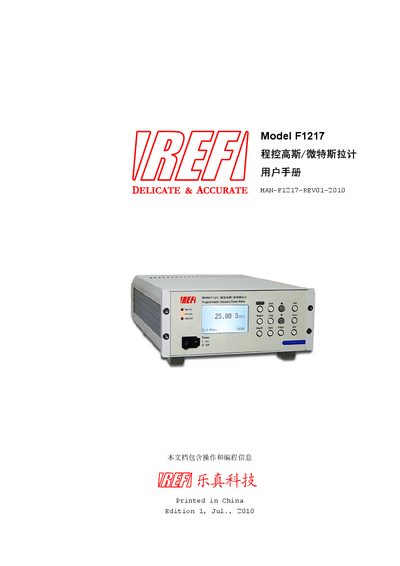

The Lezhen Technology F1217 Gauss/Tesla Meter User Manual provides installation, operation, safety, calibration, and interface instructions.
This manual covers the complete setup and use of the F1217 programmable Gauss/Tesla meter. It includes safety information, warranty and calibration services, unpacking procedures, and detailed installation steps for both desktop and rack mounting.
The document also describes front‑panel operation, measurement modes, computer interface options (RS‑232C and USB‑232), sensor handling, technical specifications, and an appendix of unit conversions and reference data. This manual is written in Chinese.
| Input AC voltage (RMS Vac) | 209‑231 V (typical 220 V) |
|---|---|
| AC frequency | 48‑60 Hz (typical 50 Hz) |
| Apparent power (Papp) | 20‑30 W (typical 25 W) |
| Magnetic field measurement range | -300 G to +300 G |
| Resolution | 0.01 G |
The product is covered by a 12‑month warranty from the date of shipment for items sold in mainland China.
The instrument is classified as Safety Class 1, providing protection through a grounded terminal.
The device has one sensor channel.
It requires 220 V RMS AC power at 50‑60 Hz.
