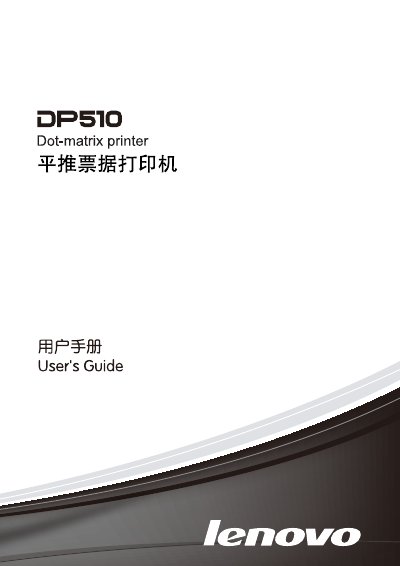

This manual provides installation, operation, parameter settings, and troubleshooting instructions for the Lenovo DP510 dot matrix printer.
The Lenovo DP510 is a dot matrix printer designed for high-intensity printing tasks. This user manual guides users through the initial setup, including selecting an appropriate environment, unpacking checks, and installing the ribbon and paper guides.
The document details how to load various types of paper, such as single-sheet and continuous forms, and explains the operation of the control panel keys in both online and offline states. It also covers parameter settings for vertical correction, system configuration, and font simulation, along with maintenance procedures. This manual is written in Chinese.
The operating temperature should be between +5°C and +40°C, with a relative humidity of 10% to 80% (no condensation).
The printer supports a maximum paper width of 11.7 inches (297 mm) for single-sheet paper.
Open the box and verify that all 11 items listed in the manual, such as the USB cable, ribbon, and driver CD, are present.
You should use the bidirectional test/correction function to align the vertical lines.
