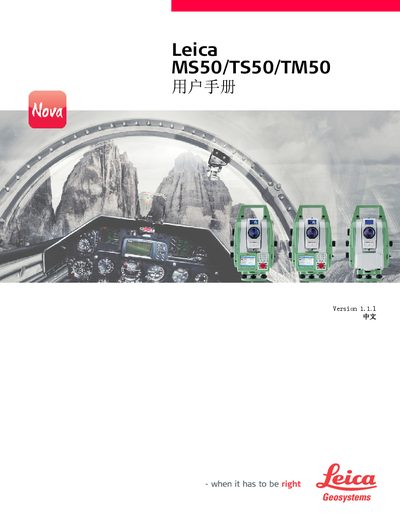

The Leica MS50/TS50/TM50 User Manual provides safety guidelines, system description, operation steps, calibration, maintenance, and technical specifications…
This manual covers all aspects of using the Leica MS50/TS50/TM50 series, including safety instructions, system architecture, user interface details, operating procedures, inspection and calibration methods, and maintenance and transport guidelines. It also contains the full set of technical parameters and the software license agreement.
Safety information emphasizes laser hazards, proper handling of batteries, and environmental precautions. Technical sections describe laser wavelength, power, pulse characteristics, measurement accuracy, and supported accessories. This manual is written in Chinese.
| Laser wavelength | 650 nm – 690 nm |
|---|---|
| Maximum average radiation power | 0.33 mW |
| Pulse time | 800 ps |
| Pulse repetition frequency (PRF) | 100 MHz |
| Beam divergence | 1.5 mrad × 3 mrad |
| Laser class | Class 1 |
| Minimum display resolution (distance mode) | 0.1 mm |
Do not point the telescope directly at the sun, avoid exposing the laser beam to eyes, and follow all warnings in the safety guide.
The instrument should be regularly inspected and calibrated according to the instructions in the manual, especially before and after demanding measurement tasks.
The devices are classified as Class 1 laser products.
The minimum display resolution is 0.1 mm.
