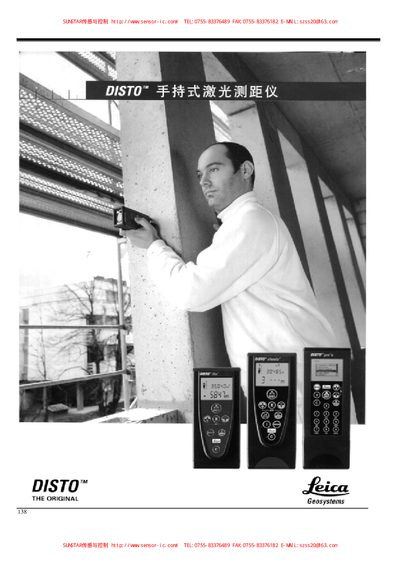

A product overview for the Leica DISTO laser distance meter range (lite4, classic4, pro4, pPro4a), detailing specifications and features.
This document provides a quick reference guide for the Leica DISTO range of hand-held laser distance meters. It covers four specific models: lite4, classic4, pro4, and pPro4a.
The text details key technical specifications including measurement accuracy (ranging from ±1.5mm to ±5mm), measurement ranges up to 300m with a prism, and various display units. Features highlighted include the built-in calculator for area and volume calculations, data storage capacity, and connectivity options. This manual is written in Chinese.
| Measurement Accuracy (lite4) | ±3mm/0.1in |
|---|---|
| Measurement Accuracy (classic4) | ±3mm/0.1in |
| Measurement Accuracy (pro4) | ±3mm/0.1in |
| Measurement Accuracy (pPro4a) | ±5mm/0.2in |
| Measurement Range (Standard) | 0.3m to over 100 m |
| Measurement Time (Standard) | 0.5 to approx 4 sec |
| Measurement Time (Continuous) | 0.16 to approx 1 sec |
| Dimensions (lite4/classic4) | 154×69×44mm |
| Dimensions (pro4/pPro4a) | 188×70×44mm |
| Weight (lite4/classic4) | 360g/12.7 oz |
| Weight (pro4/pPro4a) | 440g/15.52 oz |
The measurement accuracy for the lite4 model is ±3mm/0.1in.
The standard measurement range is from 0.3m to over 100 m (0.1 ft to over 330 ft).
The measurement time ranges from 0.5 to approximately 4 seconds.
