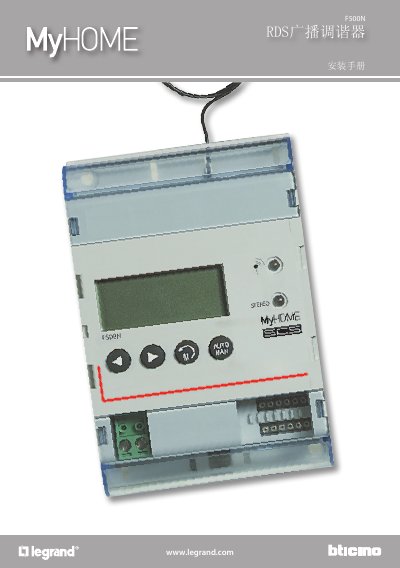

This manual provides installation, configuration, and operation instructions for the Legrand F500N RDS radio tuner.
The Legrand F500N is an RDS radio tuner designed to tune and save FM broadcast frequencies. It connects to audio systems via a bus interface (SCS) and features a backlit display with LED indicators for signal quality and stereo reception.
This guide covers the setup process, including SC bus connection and configuration using a specific tool. It details how to install the unit on a DIN rail, connect coaxial antennas, and operate the device to manually or automatically search for broadcast stations. This manual is written in Chinese.
| Bus Power Voltage | 18 – 27 Vdc |
|---|---|
| Standby Current | 5 mA |
| Operating Temperature | 0 – 50 °C |
The device can save up to 15 broadcast stations, depending on the configuration.
A steady green LED indicates that signal reception is very good.
