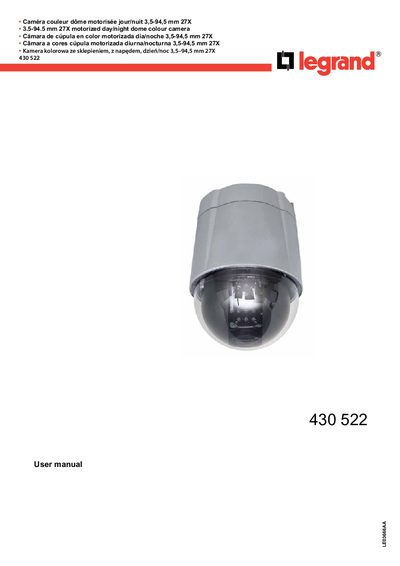

This manual covers the installation, configuration, and operation of the Legrand 430 522 motorized dome camera, including features, wiring, and protocol…
The Legrand 430 522 is a powerful motorized dome camera featuring a 27x optical zoom and 12x digital zoom for a maximum magnification of 324x. It supports high-speed pan and tilt functions up to 360° per second using Vector Drive and Micro-Stepping Control technologies. The camera includes a 1/4-inch Sony interline transfer CCD sensor and offers various focus modes including auto, manual, and semi-auto. This manual is written in French.
| Optical Zoom | 27x |
|---|---|
| Max Zoom Magnification | 324x |
| Pan/Tilt Speed | 360°/sec |
| Preset Capacity | 127 |
| Swing Capacity | 8 sets |
| Pattern Capacity | 4 sets |
| Group Capacity | 8 sets |
| Privacy Mask Capacity | 4 |
| Max Camera Units | 255 |
| Alarm Inputs | 4 |
| Operating Temperature | -10 to +50 °C |
| Fuse Specification | 250V 2A |
The factory default of Camera ID is 1.
The factory default protocol is Pelco-D at 2400 bps.
No, do not turn on the terminal resistor of all cameras; it should only be set for the controller and the last camera in a chain.
The change will be effective after you reboot the camera.
