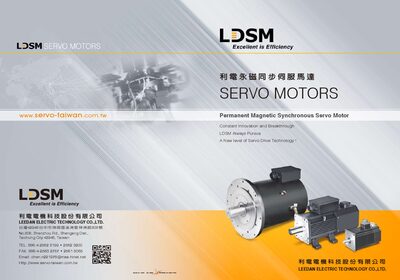

The Leedan LDSM Series data sheet lists specifications, dimensions, and application fields for permanent magnetic synchronous servo motors from LDSM60 to…
The LDSM Series permanent magnetic synchronous servo motors are designed for a wide range of industrial applications such as automation, CNC machining, plastic injection molding, and robotics. The series includes models from LDSM60 up to LDSM450, each offering high efficiency, oil‑cooled designs, and robust construction.
The data sheet provides detailed technical parameters for each model, including rated output, torque, current, speed, insulation class, IP protection, and operating temperature ranges. It also describes connector pinouts, cooling fan design, and standard versus high‑speed model options. This manual is written in Chinese.
| Insulation class | H (B type) |
|---|---|
| Protection rating | IP54 |
| Operating temperature range | -10 °C to +40 °C |
| Rated output (LDSM60‑A) | 0.2 kW |
| Rated torque (LDSM60‑A) | 0.066 kgf‑m |
| Maximum speed (LDSM60‑A) | 5000 rpm |
The motors are rated with insulation class H (B type).
All models have an IP54 protection rating.
They are designed for temperatures from –10 °C to +40 °C.
Applications include automatic test, pipe cutting, hydraulic/electric transfer, material conveying, machine positioning, robotics, semiconductor, textile, printing, spring making, packaging, material testing, and various CNC and grinding machines.
