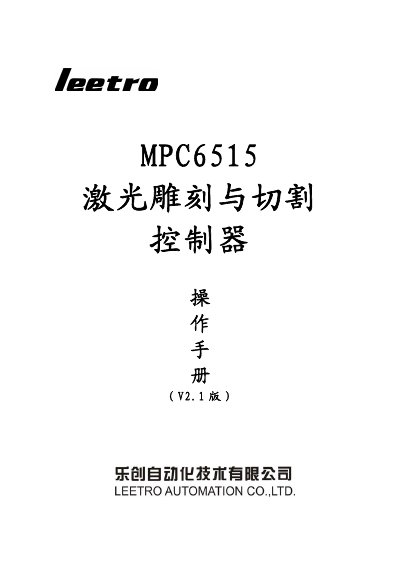

The Lechuang Automation MPC6515 manual provides installation dimensions, hardware interfaces, PAD03 operation, touchscreen usage, and troubleshooting for…
The MPC6515 controller is designed for laser engraving and cutting machines. It operates as an offline control card, receiving processed graphics and path data from a PC via USB or serial communication, and executes the machining tasks through its PAD03 panel.
The manual covers hardware layout, installation dimensions, PAD03 panel wiring and functions, touchscreen programming, external indicator LEDs, blower control, dual‑laser head support, and detailed error handling procedures to ensure safe and reliable operation. This manual is written in Chinese.
| Mainboard mounting screws | 6 M3 screws |
|---|---|
| USB data download interface | USB port on MPC6515 |
| Y1 pin 1 function | Blower control I/O (low = on, high = off) |
| Y1 pin 2 function | End‑of‑process indicator signal |
| Y1 pin 3 function | USB‑drive activity indicator signal |
Connect an external LED to Y1 pin 3; the pin provides a signal that can drive a relay or LED to show the USB‑drive read status.
Use Y1 pin 1 as an I/O line: a low level turns the blower on, a high level turns it off, controlled by the processing commands.
Yes, the PAD03 panel uses a 9‑pin connector; users can design custom button layouts by wiring to the defined pins (K1‑K9).
Error 0xf2 indicates a firmware‑file version mismatch; re‑download matching firmware and hardware files.
