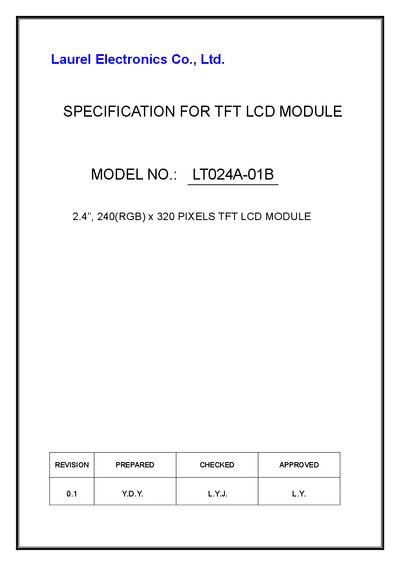

The Laurel LT024A-01B 2.4" TFT LCD Module datasheet provides specifications, dimensions, electrical and optical characteristics, and handling precautions.
The LT024A-01B is a 2.4‑inch transmissive TFT LCD module with a 240(RGB) × 320 pixel display and an ILI9341V controller. It operates with an 8/16‑bit 8080 parallel interface and includes a white LED backlight.
Key specifications include a supply voltage of 2.8 V (typical), LED backlight current of 15 mA (typical), brightness up to 160 cd/m², contrast ratio around 320, and an operating temperature range of –20 °C to +70 °C. The document also lists absolute maximum ratings, pin assignments, and detailed precautions for handling, storage, and design.
| Screen Size | 2.4 inch (diagonal) |
|---|---|
| Resolution | 240(RGB) × 320 pixels |
| Interface | 8/16‑bit 8080 parallel |
| Supply Voltage (VDD) | 2.8 V typical |
| LED Backlight Current | 15 mA typical |
| Brightness | 160 cd/m² typical |
| Contrast Ratio | 320 typical |
| Operating Temperature | -20 °C to +70 °C |
The module operates from –20 °C to +70 °C.
The typical LED backlight current is 15 mA.
Pin 6 is the RESET pin, active low.
The logic supply voltage (VDD) must not exceed 4.6 V.
