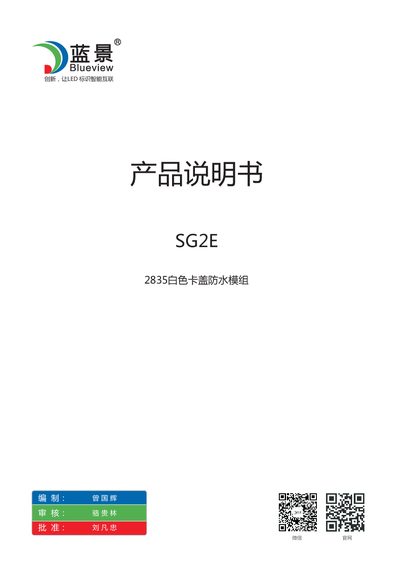

The manual provides features, optical parameters, installation, usage, troubleshooting, and packaging details for the SG2E 2835 white card‑cover waterproof…
The SG2E 2835 white card‑cover waterproof module is a compact, transparent LED signage component designed for back‑lit light boxes and advertising signs. It offers high luminous efficacy, a wide viewing angle, and IP66/67 waterproof protection, making it suitable for installations with a depth of 6‑18 cm.
The document covers product specifications, recommended installation methods (3M adhesive and screws), wiring guidelines, cascade limits, safety precautions, and a step‑by‑step installation procedure. It also includes a troubleshooting guide, packaging instructions, and recycling information for end‑of‑life handling. This manual is written in Chinese.
| Luminous efficacy | 170 lm/W |
|---|---|
| Color temperature | 6500 K |
| Color rendering index | Ra ≥70 |
| Viewing angle | 160° |
| Maximum cascade number | 30 pcs |
Up to 30 modules can be connected in a single‑ended power configuration.
Connect the load first, then the power supply, and ensure correct polarity and secure terminals.
