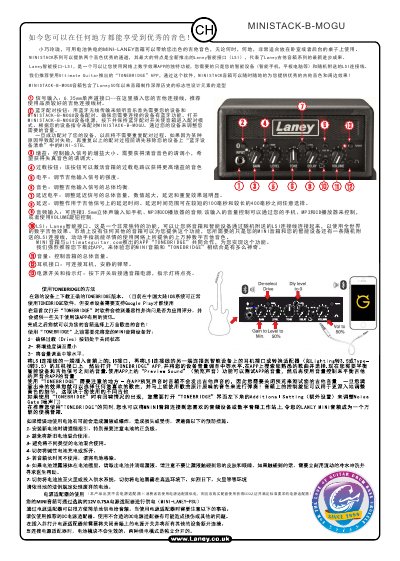

This manual explains how to set up and use the Laney MINISTACK‑B‑MOGU portable speaker, including Bluetooth pairing, LSI interface, gain, delay and audio…
The Laney MINISTACK‑B‑MOGU is a compact, battery‑powered speaker designed for guitar players. It offers two high‑quality channels, a Laney Smart Interface (LSI) for digital effects, and Bluetooth connectivity for wireless audio playback.
The guide covers signal input (6.35 mm mono jack), Bluetooth pairing steps, gain and overload controls, tone and delay adjustments (100‑400 ms), 3.5 mm stereo audio input, headphone output, power switch and indicator, and how to use the LSI with the recommended TONEBRIDGE app. This manual is written in Chinese.
| Signal input connector | 6.35 mm mono jack |
|---|---|
| Bluetooth pairing | Standard Bluetooth wireless connection |
| Gain control | Adjustable gain knob |
| Overload button | Activates overload circuit for higher gain tones |
| Delay range | 100 ms – 400 ms |
| Audio input | 3.5 mm stereo jack for phone, MP3, CD player |
| Headphone output | Standard 3.5 mm headphone jack |
| Power source | Battery powered; no power adapter included |
Turn on the speaker, press and hold the Bluetooth pairing button until the unit enters pairing mode, then select the speaker from your device’s Bluetooth list and follow the on‑screen instructions.
LSI is a proprietary interface that connects the speaker to a smartphone or tablet via the supplied LSI cable, allowing the TONEBRIDGE app to provide digital guitar effects.
Use the delay control knob to set the delay level, and the delay time knob to select a delay time between 100 ms and 400 ms.
It has a 3.5 mm stereo audio input for connecting phones, MP3 players, or CD players, with volume controlled by the source device or the speaker’s volume knob.
