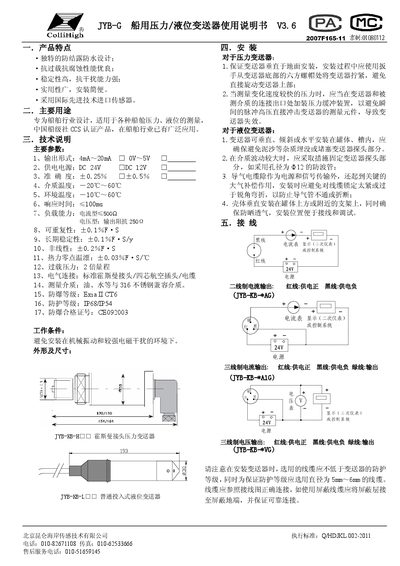

User manual for the JYB-G shipboard pressure and level transmitter, covering features, installation, wiring, safety, and troubleshooting.
The JYB-G shipboard pressure/level transmitter is designed for marine applications, measuring pressure and liquid level in various ship compartments. It complies with CCS certification and offers robust anti‑corrosion, anti‑overload, and anti‑condensation features.
The manual provides detailed instructions on installation (vertical mounting, use of pressure buffering for fast pressure changes), wiring (standard HART, 4‑20 mA or 0‑5 V output), safety measures for explosive environments, maintenance, and fault diagnosis. This manual is written in Chinese.
| Output type | 4‑20 mA or 0‑5 V |
|---|---|
| Supply voltage | DC 24 V or DC 12 V |
| Accuracy | ±0.25 % FS |
| Medium temperature range | ‑20 °C to 60 °C |
| Ambient temperature range | ‑10 °C to 60 °C |
| Response time | ≤100 ms |
| Load capability (current type) | ≤500 Ω |
| Load capability (voltage type) | Output impedance 250 Ω |
| Repeatability | ±0.1 % FS |
| Long‑term stability | ±0.1 % FS/yr |
| Non‑linearity | ±0.2 % FS |
| Temperature drift | ±0.03 % FS/°C |
| Overload pressure | 2 × range |
| Explosion protection rating | Exia IIC T6 |
| Protection rating | IP68 / IP54 |
| Measurement medium compatibility | Oil, water, compatible with 316 stainless steel |
Mount the transmitter vertically on a flat surface and tighten it using a wrench at the bottom hex nut, avoiding rotation of the top part.
Verify that the transmitter is powered, check the wiring against the wiring diagram, and ensure the correct supply voltage is applied.
