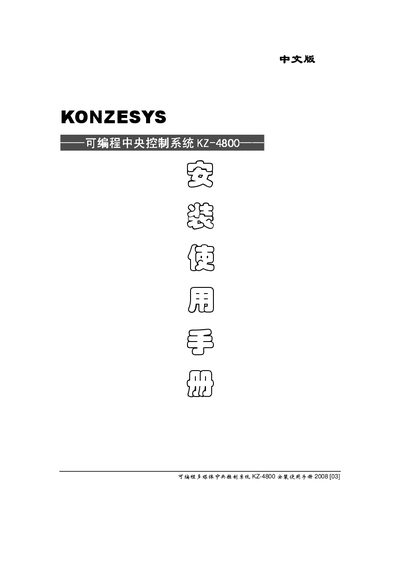

This manual provides installation steps, wiring diagrams, interface details and programming instructions for the KONZESYS KZ-4800 programmable multimedia…
The KONZESYS KZ-4800 is a programmable multimedia central control system designed for classrooms, conference rooms and multi‑function halls. It integrates power management, audio/video switching, infrared remote control learning and various communication interfaces.
The guide covers safety precautions, unpacking, front and rear panel layouts, wiring diagrams for infrared emitters, projectors, motorized screens, and other devices, as well as detailed descriptions of the host interfaces, communication protocols and software usage. This manual is written in Chinese.
| Infrared emission interfaces | 4 independent programmable |
|---|---|
| I/O interfaces | 4 |
| RS-232 control interfaces | 3 |
| RS-485 interface | 1 |
| DC12V power interfaces | 2 |
| Video matrix | 4×2, 100 MHz bandwidth |
| Audio matrix | 6×2 |
| VGA interface | 3×2 with 400 MHz driver |
| Input power | 220 V 50 Hz AC |
Insert the 3.5 mm plug of the infrared emitter into the “infrared emission interface” socket on the main controller and secure it with tape, ensuring the correct orientation.
The system includes three programmable RS‑232 ports (RS232‑1, RS232‑2, RS232‑3) for controlling external devices.
