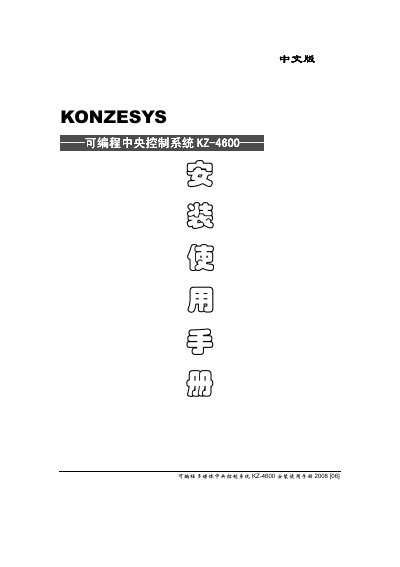

The KONZESYS KZ-4600 installation guide provides setup steps, wiring diagrams, interface descriptions, and programming instructions for the programmable…
This guide explains how to safely install and operate the KZ-4600 programmable multimedia central control system. It covers safety precautions such as proper grounding, avoiding moisture, and ensuring adequate ventilation during use.\n\nThe manual details the system’s hardware features, including front and rear panel layouts, wiring connections for infrared emitters, projectors, motorized screens, and various I/O interfaces. It also describes the software functions for infrared code learning, network communication, and device control through the provided control software. This manual is written in Chinese.
| Input voltage | 220 V AC, 50 Hz |
|---|---|
| Infrared emitter ports | 1 |
| I/O ports | 2 |
| RS‑232 control interface | 1 |
| IC card reader port | 1 |
| DC 12 V power output | 1 |
| Video matrix | 3 × 1 |
| Audio matrix | 3 × 1 |
| VGA interfaces | 3 × 2 |
| USB hub ports | 4 |
Connect the unit to a standard 220 V 50 Hz AC source using the supplied three‑phase plug and ensure the ground is properly connected.
You can start learning via the control software by pressing “开始读码”, or use the panel method by holding a device button for about 6 seconds, then follow the on‑screen prompts to record the code.
A standard 9‑pin RS‑232 connector is used, with pin 2 as the transmit line and pin 5 as ground.
