The KONITA T/U series CTP user manual provides safety rules, installation steps, operation procedures, maintenance tips, and technical specifications.

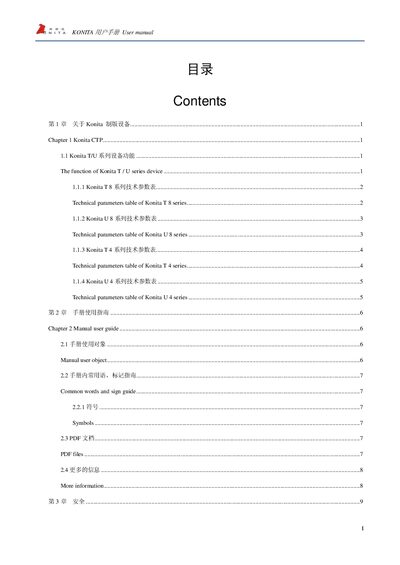

This manual covers the Konita CTP equipment of the T/U series. It begins with an overview of device functions and detailed technical parameter tables for each model (T 8, U 8, T 4, U 4). Subsequent chapters guide users on how to safely install, move, and connect the machine, including ground‑wire preparation.
The document then explains preparation, operation flow, routine maintenance, and troubleshooting. It includes step‑by‑step instructions for starting and stopping the device, loading plates, handling errors, and replacing consumables such as air filters and plate‑clamping components. This manual is written in Chinese.
| Model | KONITA T 800 E / T 800 S / T 800 F |
|---|---|
| Exposing Method | External Drum |
| Imaging System Channels | 32‑channel |
| Output Speed | 16 plates/hour |
| Plate Size | Max 1,130 × 920 mm, Min 400 × 300 mm |
| Resolution | 2,400 dpi |
| Power Supply | Single‑phase 200‑240 V, 4 kW |
| Net Weight | 900 kg |
| Device Size | 2,320 × 1,080 × 950 mm (W × D × H) |
| Operating Environment | 21‑25 °C, 18‑26 °C allowed, humidity < 70 % |
Open the filter housing, remove the old cartridge, insert a new one, and close the housing securely.
Follow the instructions in the “Konita T/U series device dedicated ground‑wire making guide” to cut, strip, and connect the ground wire as specified.
