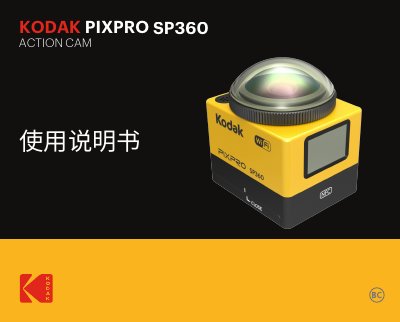

The Kodak SP360 Action Cam user manual provides setup, operation, safety, and specification details in Chinese.
This manual explains how to prepare and use the Kodak SP360 Action Cam, covering safety warnings, battery and memory card installation, charging, and operating modes such as video, photo, and Wi‑Fi. It also describes the camera's waterproof capabilities, accessory mounting options, and troubleshooting tips.
A full specifications table lists the sensor type, pixel count, lens details, video resolutions, file formats, and supported recording modes, helping users understand the camera's performance limits. This manual is written in Chinese.
| Image sensor type | 1/2.33" MOS |
|---|---|
| Effective pixels | 1.636 MP |
| Total pixels | 1.752 MP |
| Lens focal length (35 mm equivalent) | 8.25 mm |
| Maximum aperture | F2.8 |
| Optical zoom | Fixed (214° field of view) |
| Focus range | 0.5 m to ∞ |
| Video resolution (max) | 1920×1080 @ 30 fps |
| Photo resolution (max) | 3264×3264 (1:1, 10 MP) |
| Video file format | MP4 (H.264 video, AAC audio) |
| Supported memory cards | microSD or microSDHC |
The camera records video at up to 1920×1080 pixels at 30 fps.
