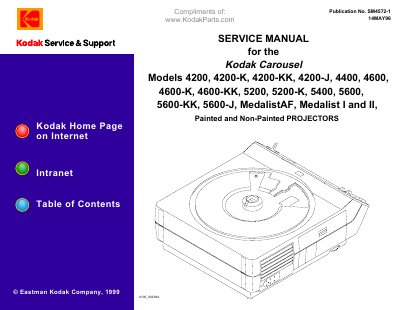

This service manual covers maintenance, repair procedures, adjustments, lubrication, specifications, and diagnostics for Kodak Carousel projector models.
This document is a comprehensive service manual for various Kodak Carousel projector models. It provides detailed instructions on replacing and installing key components such as the lower housing assembly, fan shaft, motor, worm pulley, thermal fuse, lamp module receptacle, mechanism, auto-focus bracket, cam stack, lens mount, focus shaft, and cycle solenoid.
| Electrical Supply (U.S. Models) | 110 - 125 V ac |
|---|---|
| Power Consumption | 400 W |
| Slide size | 35 mm, 50 x 50 mm (2 x 2 in.) |
| Lamp Voltage | 82 V |
| Cooling Fan speed | 2780 or 3000 RPMs |
The projectors support 35 mm and 50 x 50 mm (2 x 2 in.) slides.
The FHS lamp has an average life of 70 hours.
The projector consumes 400 W of power.
