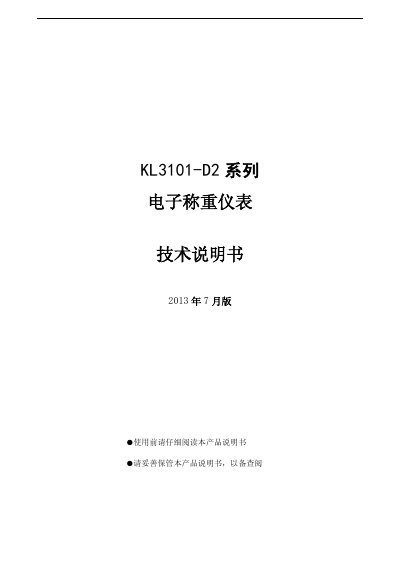

Technical manual for the KL3101-D2 series electronic weighing instrument, covering specifications, installation, calibration, and communication settings.
This manual provides detailed information on the KL3101-D2 series electronic weighing instrument. It includes technical features, installation connections, key and indicator descriptions, and menu operation instructions.
The document also explains scale calibration procedures, internal code viewing, parameter configuration, communication formats (RS485, RS232, Modbus), and default factory settings, along with error messages and troubleshooting guidance. This manual is written in Chinese.
| Rated Input Power | AC 220V 50Hz/60Hz (KL3101-D2, KL3101-D2+), DC 24V (KL3101-D2+A) |
|---|---|
| Display | 6‑digit 0.8‑inch red LED |
| Keys | 6 membrane keys |
| PC Communication Interface | RS485 and RS232, continuous and Modbus modes |
| Relay Output | 1 NO/NC relay, AC 250V/10A, DC 30V/10A |
| Analog Output | 4‑20 mA or 0‑10 VDC |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Relative Humidity | ≤85 %RH |
Enter the FUNC 0 menu, select the sensor, input the new address (01‑16), and confirm.
The default password is six digits, 888888. It can be changed in the system password setting menu.
Press FUNC 9, then confirm to enter the AD value view, where the zero‑point and calibration point AD codes are displayed.
