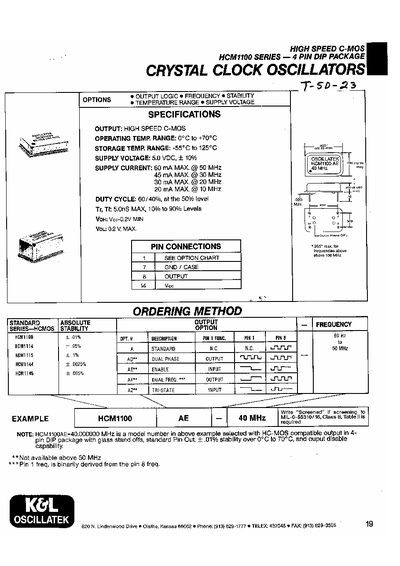

This document provides technical data for the HCM1100 series of 4-pin DIP package crystal clock oscillators manufactured by JRC. The devices are designed as high-speed CMOS output logic components.
Key specifications include an operating temperature range of 0°C to +70°C, a storage range of -55°C to 125°C, and a supply voltage of 5.0 VDC with a maximum current draw dependent on frequency (up to 60 mA at 50 MHz). The datasheet details various options for output logic, stability, temperature range, and supply voltage.
| Output Type | HIGH SPEED C-MOS |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -55°C to 125°C |
| Supply Voltage | 5.0 VDC, + 10% |
| Max Supply Current @ 50 MHz | 60 mA MAX. |
| Duty Cycle | 60/40% |
The maximum supply current depends on the frequency, ranging from 20 mA MAX. @ 10 MHz to 60 mA MAX. @ 50 MHz.
The HCM1100 series uses a 4 PIN DIP PACKAGE.
