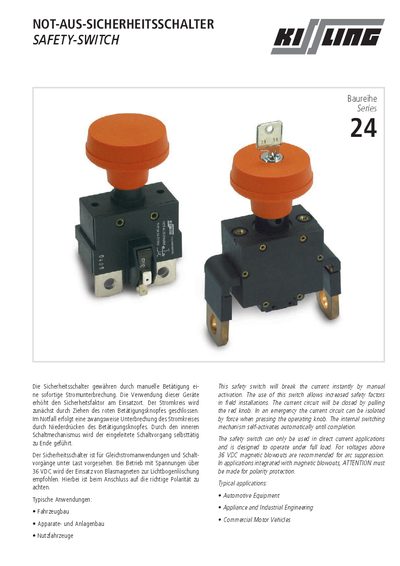

The Kissling 24 safety switch provides manual DC current interruption with up to 500 A continuous rating and optional magnetic blowouts.
The Kissling 24 safety switch is a manually operated device for DC applications that instantly breaks the current under load. It is suitable for automotive equipment, industrial engineering and commercial motor vehicles, and can be equipped with magnetic blowouts for arc suppression above 36 VDC.
Technical data include a temperature range of –30 °C to +70 °C, a thermoplastic housing, IP40 interior protection, and a mechanical life of 10 000 switching cycles. The switch offers continuous current ratings of 300 A or 500 A, a voltage range of 12 V–80 V, and optional accessories such as auxiliary contacts, magnetic blowouts, and extended push buttons. This manual is written in German.
| Operating temperature range | -30 °C to +70 °C |
|---|---|
| Housing material | Thermoplastic |
| Interior protection class | IP40 |
| Continuous current rating | 300 A / 500 A |
| Voltage range | 12 V – 80 V |
The switch can carry a continuous current of 300 A or 500 A.
It operates from 12 V up to 80 V.
Resetting is only possible with the key.
The interior is protected to IP40.
