This document is a detailed description of J.FINDLER&SOHN S. 02/02 Mikroschalter Bt. 1 v. 1. The product is a micro switch with the following features: operating voltage of 250V AC or 24V DC, operating current of 15A or 6A, IP 40 protection level, suitable for temperature range from -10°C to +85°C.

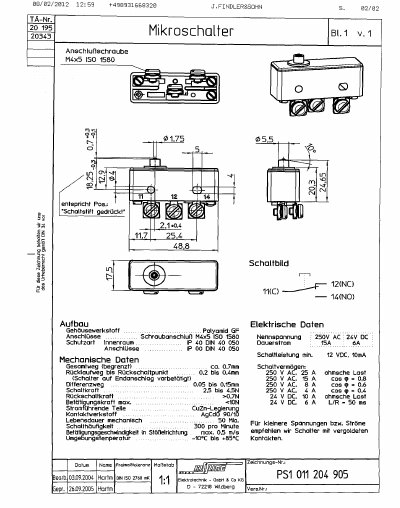

This document is a technical datasheet for the J.F. Findler & Sohn microswitch model Bt. 1 v. 1 M4x5. It provides specific mechanical data such as travel distance, return distance, and actuation force, along with electrical ratings for various voltage and current loads. This manual is written in German.
| Operating Temperature | -10°C bis +85°C |
|---|---|
| Actuation Force | 2.5 bis 4.5N |
| Contact Material | AgCdO 90/10 |
| Housing Material | Polyamid GF |
| Mounting Screw | M4x5 ISO 1580 |
The device is rated for an ambient temperature range of -10°C to +85°C.
The maximum current is 10A for a 24V DC supply.
