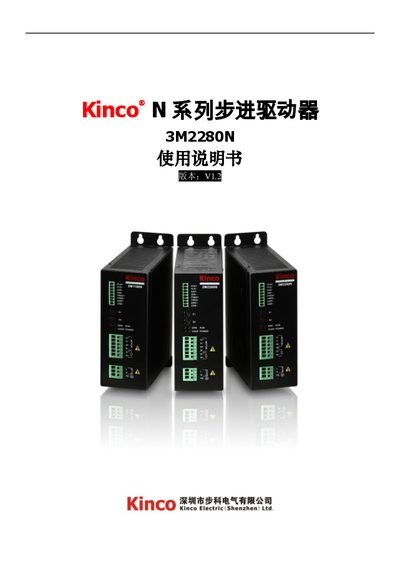

The Kinco 3M2280N stepper driver user manual provides safety guidelines, product overview, specifications, installation instructions and troubleshooting.
This manual covers safe handling, wiring, and installation of the Kinco N‑series 3M2280N stepper motor driver. It includes detailed safety precautions, a description of the driver’s features, and recommended application areas such as CNC machines and engraving equipment.
Technical specifications, wiring diagrams, signal timing, and a comprehensive FAQ are provided to help users configure the driver, understand indicator signals, and resolve common issues. This manual is written in Chinese.
| Phase current (peak) | 2.8‑8.0 A (multiple steps) |
|---|---|
| Microstep resolution | 400‑20 000 pulse/rev (14 settings) |
| Input signal ports | PLS (CW), DIR (CCW), FRE |
| Protection functions | Over‑voltage, under‑voltage, over‑current, over‑heat |
| Cooling method | Forced air cooling |
| Operating temperature | 0 °C – +40 °C |
| Relative humidity | < 85 % RH (non‑condensing) |
| Weight | 1.5 kg |
| Dimensions | 201 mm × 147 mm × 66 mm |
| Ingress protection | IP20 |
A slowly blinking indicator means a blinking frequency of 0.5 Hz.
Disconnect the power supply, then reboot the driver to clear any alarm.
