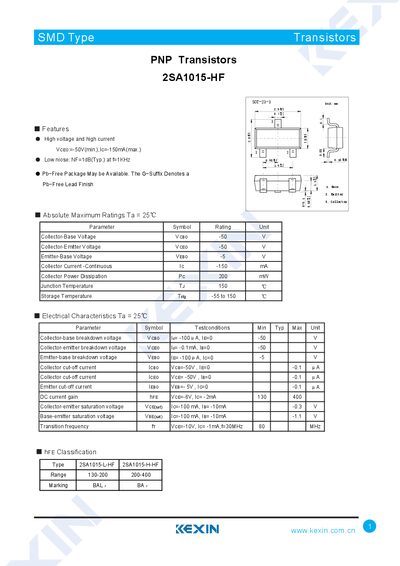

Datasheet for Kexin 2SA1015-L-HF and 2SA1015-H-HF SMD PNP transistors, detailing electrical characteristics, ratings, and typical performance.
This datasheet provides the electrical specifications and characteristic curves for the Kexin 2SA1015 series PNP transistors (models L‑HF and H‑HF). It lists absolute maximum ratings, typical static characteristics, and hFE classification ranges.
The document also includes package information (SOT‑23‑3), marking details, and notes on Pb‑free options, helping designers select the appropriate device for high‑voltage, high‑current applications.
| Collector‑Emitter Breakdown Voltage (VCEO) | -50 V (min) |
|---|---|
| Collector Current (IC) | -150 mA (max) |
| Power Dissipation | 200 mW |
| Current Gain (hFE) Range | 130‑200 (L‑HF) / 200‑400 (H‑HF) |
| Package Type | SOT‑23‑3 |
| Pb‑Free Package Availability | Yes (G‑suffix denotes Pb‑Free lead finish) |
The maximum collector‑emitter voltage is -50 V (minimum rating).
The transistors can handle up to -150 mA of collector current.
They are supplied in an SOT‑23‑3 surface‑mount package.
Yes, Pb‑free packages are available and are indicated by a G‑suffix.
