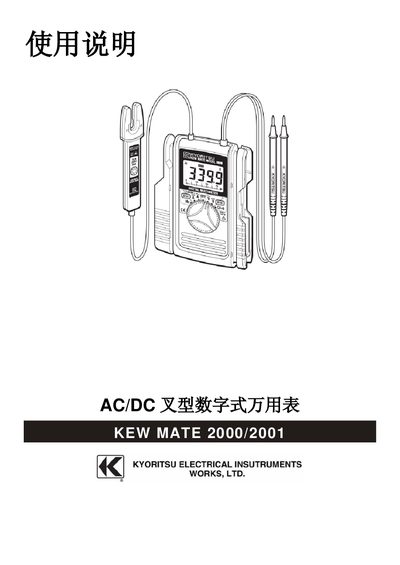

The KEW MATE 2000/2001 AC/DC digital multimeter user manual provides safety warnings, features, specifications, and step‑by‑step measurement instructions.
This manual explains how to safely operate the KEW MATE 2000/2001 AC/DC digital multimeter. It begins with safety warnings, including IEC‑61010 compliance, voltage limits (no measurements above 600 V AC/DC), and precautions against moisture, over‑range inputs, and damaged equipment.
The guide then details the instrument’s features, technical specifications, and measurement procedures for AC/DC current, voltage, resistance, and frequency. It also covers auxiliary functions such as automatic shut‑off, data hold, range lock, and battery replacement, helping users obtain accurate readings in a variety of test environments. This manual is written in Chinese.
| AC current range (Model 2000) | 0 ~ 60 A, ±2.0 % rdg ± 5 dgt (50/60 Hz) |
|---|---|
| AC current range (Model 2001) | 0 ~ 100 A, ±2.0 % rdg ± 5 dgt (50/60 Hz) |
| DC current range (Model 2000) | 0 ~ ±60 A, ±2.0 % rdg ± 5 dgt |
| Input impedance (voltage) | 10 MΩ for AC and DC |
| Resistance range (340 Ω range) | 0 ~ 33.99 MΩ, ±1.0 % rdg ± 3 dgt |
| Frequency measurement range | 0 ~ 10 kHz (current), 0 ~ 300 kHz (voltage) |
| Battery type | 2 × R03 (UM‑4) 3 V cells |
Model 2000 can measure AC current from 0 to 60 A with an accuracy of ±2.0 % rdg ± 5 dgt (50/60 Hz).
Set the range switch to the position that displays “DC” on the LCD, then connect the red probe to the circuit’s positive point and the black probe to the negative point.
