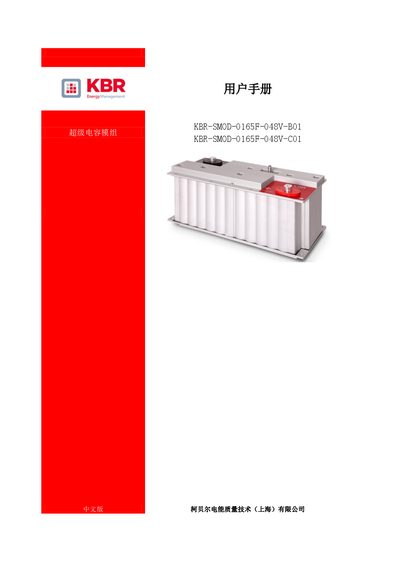

The KBR user manual provides installation, wiring, maintenance, and safety instructions for the KBR‑SMOD‑0165F‑048V‑B01 and C01 supercapacitor modules.
This manual describes the KBR‑SMOD‑0165F‑048V series supercapacitor modules, which have a rated voltage of 48 V and a capacity of 165 F. The modules consist of 18 individual 2.7 V 3000 F cells housed in an IP65‑rated aluminum alloy enclosure.
Key sections cover unpacking, safe handling, mechanical and electrical installation, wiring of the 4‑pin connector for temperature and over‑voltage signals, routine maintenance, storage, disposal, example installations, a checklist, and attachment details. This manual is written in Chinese.
| Rated voltage / capacity | 48 V / 165 F |
|---|---|
| Number of cells | 18 independent cells (2.7 V 3000 F each) |
| Protection rating | IP65 (IEC 529) |
| Operating temperature range | -10 °C to 45 °C |
| Recommended spacing between modules | ≥ 10 mm |
Each module contains 18 independent supercapacitor cells, each rated 2.7 V 3000 F.
