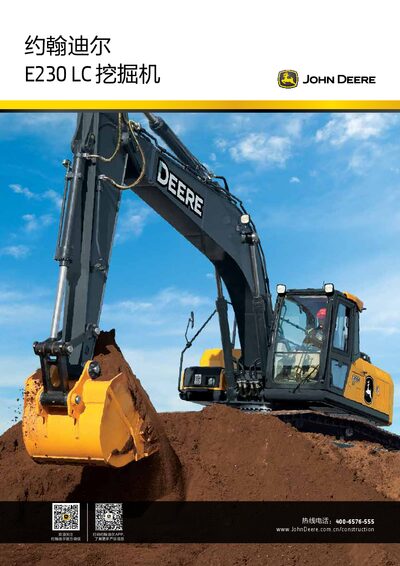

Official user manual for the John Deere E230 LC excavator with specifications, operation, and maintenance guidance.
The John Deere E230 LC excavator is a high‑performance machine equipped with a PowerTech engine, advanced hydraulic control, and a spacious, low‑noise cab. It offers four hydraulic power modes and multiple work modes to balance productivity and fuel efficiency.
The manual provides detailed technical specifications, cab ergonomics, maintenance procedures, and component descriptions such as the engine, hydraulic system, electrical system, and optional accessories, helping operators keep the machine running reliably. This manual is written in Chinese.
| Net Rated Power | 117 kW |
|---|---|
| Operating Weight | 23.5‑24.0 tons |
| Maximum Digging Depth | 6700 mm |
| Bucket Digging Force | 151 kN |
| Arm Digging Force | 109 kN |
| Engine Model | John Deere PowerTech |
| Hydraulic System Capacity | 320 L |
| Fuel Tank Capacity | 392 L |
| Engine Oil Capacity | 14.7 L |
| Battery Capacity | 950 CCA |
The machine provides four hydraulic power modes: low‑power/economy, standard, high‑power, and an additional boost mode for extra hydraulic pressure.
The engine oil filter (and fuel filter) should be serviced every 500 operating hours.
The fuel tank holds 392 liters of fuel.
It uses two 12‑volt batteries, providing a 24‑volt system.
