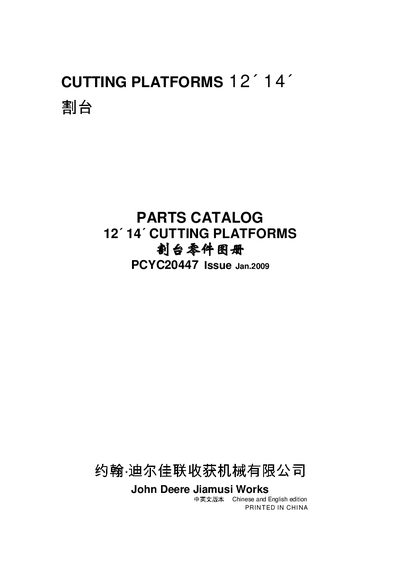

John Deere 12´ 14´ cutting platforms parts catalog provides part numbers, descriptions, quantities, and model applicability.
This catalog lists every component used in John Deere 12´ and 14´ cutting platforms, including part numbers, brief descriptions, required quantities, serial‑number applicability and the models each part fits. It is organized with a sectional index for quick navigation and a numerical index for direct part‑number lookup.
The document explains how to locate parts when the part number is known or unknown, and defines the symbols used in the tables (e.g., hyphens indicating serial‑number ranges). Users can reference the drawing keys on each page to identify the exact part needed for maintenance or repair.
| Platform width | 12´ and 14´ |
|---|
Turn to the Primary Index at the start of the catalog, determine the required section, decode the section number to the corresponding page, locate the component in the sectional index, then turn to the page and identify the part on the drawing.
Go to the Numerical Index at the end of the catalog, locate the part number, note the page location, turn to that page in the parts catalog, and find the part on the drawing.
A hyphen before the serial number means the part is used up to the shown serial number.
