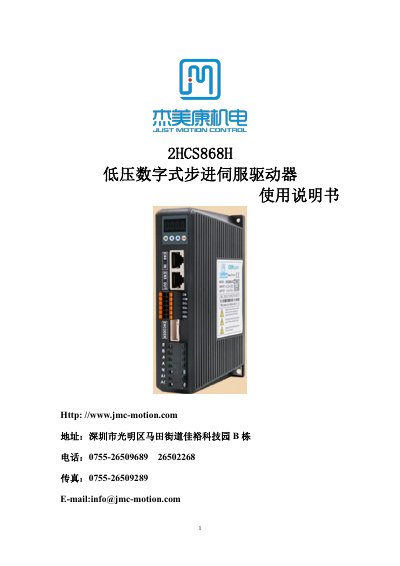

This manual covers the installation, debugging, and usage of the JMC 2HCS868H low-voltage digital stepper servo driver, including technical specs, fault…
The JMC 2HCS868H is a new type of simple stepper servo driver that integrates servo technology. It utilizes a 32-bit DSP and advanced vector control algorithms to prevent step loss, reduce motor temperature rise, and enhance high-speed performance. The driver is designed for applications requiring high torque, such as engraving machines, laser plotters, and CNC machines, offering a cost-effective alternative to AC servo systems. This manual is written in Chinese.
The driver accepts an input voltage between 24 and 90VAC.
The driver provides a continuous current output of 6.0A.
The default communication rate is 57.6Kbps.
