3HSS2208H-86 is a high-voltage digital simple stepper servo driver, compatible with our company's three-phase 86 stepper motor. This driver has features such as no lost steps, precise positioning, 100% rated torque motor driving, etc., suitable for automation equipment and instruments such as engraving machines, wire strippers, and marking machines.

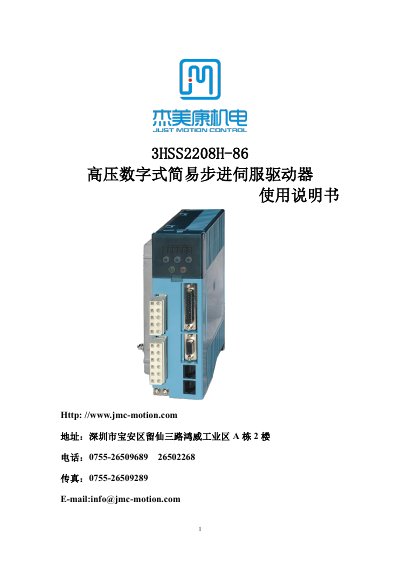

The JMC 3HSS2208H-86 is a high-voltage digital simple stepper servo driver designed for three-phase 86 stepper motors. Utilizing 32-bit DSP technology and advanced servo control algorithms, it eliminates step loss, reduces motor vibration, and enhances high-speed performance while maintaining a cost advantage over AC servo systems. The device features a built-in acceleration and deceleration control, customizable subdivision, and compatibility with 1000 and 2500 line encoders. This manual is written in Chinese.
The driver provides a continuous current output of 4.0A.
The unit operates with an AC input voltage between 180 and 250 VAC.
Install the unit vertically on its side to create strong air convection over the heat sink surface.
