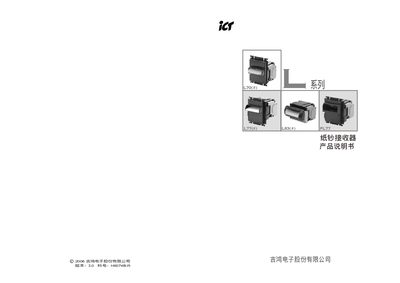

This manual provides an overview, specifications, installation, wiring, software update, maintenance and troubleshooting for Ji-Hong Electronics L series…
The L series bill acceptors (L70, L77, L83, PL77) combine improved bill sensing technology with a compact plastic housing, offering fast bill transport, multiple interface options, and easy maintenance. Features include anti‑tamper detection, automatic calibration, and a color panel indicator.
The document includes product specifications, installation guidelines, pin assignments, input/output circuit diagrams, dip‑switch configuration, software download and update procedures, maintenance instructions, and a troubleshooting guide. This manual is written in Chinese.
| Operating voltage (L70/L77/L83) | 10~16V DC |
|---|---|
| Operating voltage (Other models) | 10.8~13.2V DC |
| Operating temperature (L70/L77/L83/PL77) | 0°C~55°C |
| Operating temperature (L70#/L77#/L83#) | 0°C~65°C |
| Storage temperature | -20°C~70°C |
