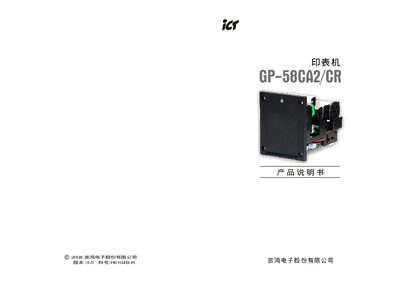

User manual for the GP-58CA2/CR printer, covering specifications, setup, wiring, software and paper roll installation.
The GP-58CA2/CR is a multifunction printer designed for vending machines and arcade systems. It features an internal clock, customizable receipts, and a built‑in checkout system that can store up to 365 days of daily reports.
This manual provides product specifications, hardware and connection settings, wiring diagrams, step‑by‑step setup instructions, software configuration, driver installation and a paper‑roll installation guide. This manual is written in Chinese.
| Operating temperature | 0 °C ~ +50 °C |
|---|---|
| Storage temperature | -20 °C ~ +60 °C |
| Power supply | 12 V DC (10.8 ~ 13.2 V) |
| Standby power | 0.16 A, 2 W |
| Working power | 2.5 A, 30 W |
| Maximum power consumption | 3.75 A, 45 W |
| Paper roll width | 56 ± 0.5 mm |
| Maximum resolution | 0.12 mm |
The printer operates from 0 °C up to +50 °C.
It requires a 12 V DC supply, typically 10.8 V to 13.2 V.
