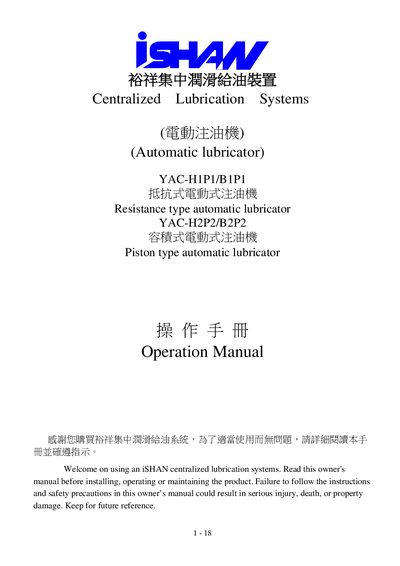

The iSHAN YAC-H1P1/B1P1/YAC-H2P2/B2P2 centralized lubrication system operation manual provides safety guidelines, installation steps, maintenance…
This manual describes the iSHAN centralized lubrication system designed for ball bearings, slideways, gears, and other machine components. It covers the application range, basic operation, safety measures, component description, and labeling.
Detailed sections guide users through installation, oil refilling, wiring, alarm setup, regular maintenance, fault diagnosis, warranty terms, and technical data. The document also provides contact information for iSHAN service centers in Taiwan and Mainland China. This manual is written in Chinese.
| Power Supply | AC220V or AC110V |
|---|---|
| Output Power | 25W / 40W |
| Maximum Output Volume | 300 ml/min (H type) / 150 ml/min (B type) |
| Maximum Output Pressure | 10 kgf/cm² (H type) / 20 kgf/cm² (B type) |
| Operating Temperature | 0 °C ~ 50 °C |
| Level Switch Current | 0.3 A (max) |
| Recommended Oil Viscosity | 30 ~ 250 cSt |
Only new lubricant with a viscosity between 30 and 250 cSt should be used; higher viscosity may damage the unit and lower viscosity can cause insufficient pressure or flow.
The YAC‑B1P1/YAC‑H1P1 models have a pressure regulator; loosen the nut, turn on power, let oil flow from the relief valve, then tighten the knob to set the desired pressure.
Check that the oil viscosity is correct, verify the level switch is functioning, and ensure the motor is operating; replace any faulty parts as needed.
