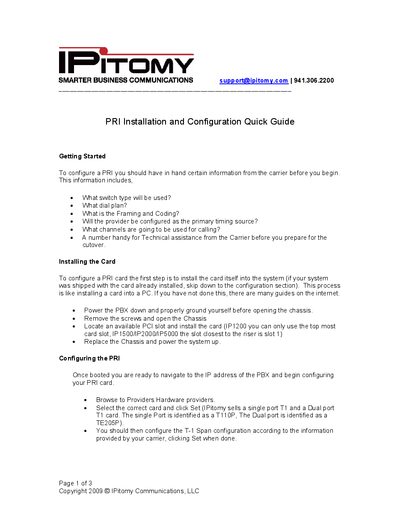

A short guide that shows how to install and configure IPitomy PRI cards (IP1200, IP1500, IP2000, IP5000) in the PBX system.
This quick guide explains the information you need from your carrier before installing a PRI card and walks you through the hardware installation steps. It covers slot placement, grounding, and basic preparation of the PBX chassis.
After the card is installed, the guide details the configuration process in the PBX web interface, including selecting the correct card type, setting T‑1 span parameters, defining trunk groups, and applying the settings. Final steps include resetting services and testing the line.
| PCI slot location | Topmost slot for IP1200; slot 1 for IP1500/IP2000/IP5000 |
|---|---|
| Supported card types | Single‑port T1 (T110P) and Dual‑port T1 (TE205P) |
| Default signaling type | PRI_CPE |
| Channel range definition | Enter start and end channel numbers for the trunk group |
You need the switch type, dial plan, framing and coding, primary timing source, channel numbers for calling, and a technical assistance phone number.
Power down the PBX, ground yourself, open the chassis, locate the appropriate PCI slot, insert the card, then close the chassis and power the system back on.
After saving and applying the programming, connect the PRI line and click the Reset USB Devices and PBX Services button.
