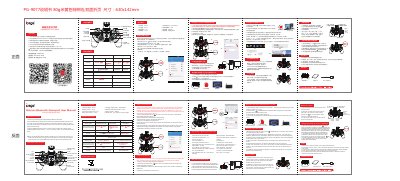

This manual explains how to set up, connect, and operate the iPega PG-9077 Bluetooth Gamepad on Android, iOS, and Windows devices.
The iPega PG-9077 Bluetooth Gamepad provides HID gamepad, mouse, and iCade modes with Turbo acceleration and multimedia controls. It features a built‑in 380 mAh battery, LED indicators, and supports a wide range of games on Android, iOS, and Windows platforms.
The manual details Bluetooth pairing procedures for Android, iOS, smart TVs, and PCs, as well as wired USB operation. It also covers charging, sleep/wake functions, Turbo activation, multimedia key usage, and safety precautions for the device. This manual is written in Chinese.
| Working voltage | DC 3.7 V |
|---|---|
| Working current | 30 mA |
| Continuous usage time | 12 hours |
| Sleep mode current | <10 µA |
| Charging voltage / current | DC 5 V / 500 mA |
| Bluetooth transmission distance | ≤ 8 m |
| Battery capacity | 380 mAh |
| Standby time (fully charged) | up to 30 days |
The built‑in battery has a capacity of 380 mAh.
Press the key you want to turbo (e.g., A) and then press the Turbo key; the key will now repeat rapidly. To cancel, hold the same key and press Turbo again.
