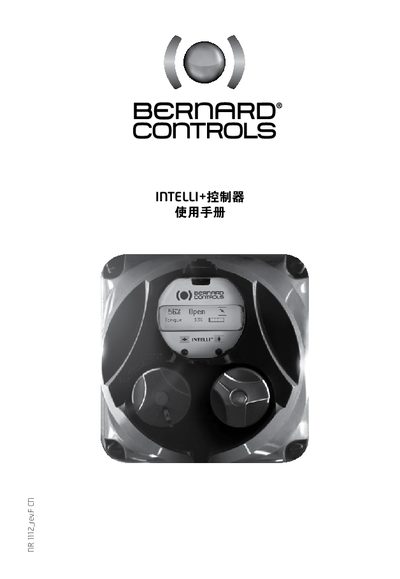

This manual provides safety instructions, installation, wiring, configuration, operation and troubleshooting for the Intelli+ NR 1112_rev.F controller.
The Intelli+ NR 1112_rev.F controller manual covers all required safety precautions and product overview before installation. It details how to connect the actuator to a valve, perform electrical wiring, and configure the controller after valve attachment.
The guide explains remote and local control methods, menu navigation, language selection, password handling, torque settings, position signal options, fieldbus control, backup battery usage, fuse protection, split‑type control box installation, maintenance procedures and fault troubleshooting. This manual is written in Chinese.
| Supply Voltage | 24 V |
|---|---|
| Power Consumption | 1.2 W |
| Control Circuit Terminal Screw Diameter | 3 mm |
| Power Circuit Terminal Screw Diameter | 4 mm |
| Travel Length | 19 mm |
| Default Deadband | 1 % |
| Battery Life (optional) | 10 years |
