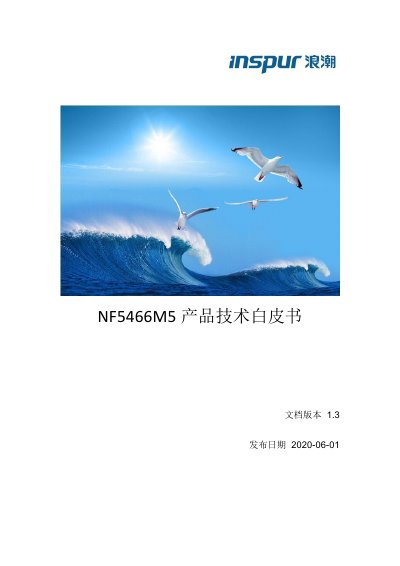

This document describes the Inspur NF5466M5, a 4U dual-processor storage rack server designed for cold/warm storage and distributed storage architectures.
The Inspur NF5466M5 is a next-generation 4U dual-processor rack server based on Intel Xeon Scalable processors. It is designed to provide excellent computing performance and flexible, ultra-large capacity local storage capabilities. The server is suitable for industries such as communications, broadcasting, transportation, government, education, and enterprise internet, serving as an ideal solution for cold and warm storage scenarios and as a foundational architecture for distributed storage systems. This manual is written in Chinese.
| Form Factor | 4U Rack Server |
|---|---|
| Processor | Max 2 Intel Xeon Scalable Processors |
| Max CPU Cores | 28 Cores |
| Max CPU Frequency | 3.8 GHz |
| Max L3 Cache | 39MB |
| Max TDP | 165W |
| Chipset | Intel C622 |
| Max Memory Slots | 24 DIMMs |
| Max Memory Speed | 2933 MT/s |
| Max Memory Capacity | 3TB |
| Max 3.5-inch Drives (Front) | 24 Drives |
| Max 3.5-inch Drives (Rear) | 16 Drives |
| Max 2.5-inch Drives (Front) | 12 Drives |
| Max 2.5-inch Drives (Rear) | 4 Drives |
| Max M.2 Slots | 4 Slots |
| Max GPU Support | 2 Dual-width or 6 Single-width |
| Max PCIe Slots | 8 Standard PCIe X8 |
| Power Supply | 800W/1300W/1600W 80 PLUS Platinum |
| Operating Temperature | 5°C ~ 35°C |
| Operating Humidity | 10% ~ 90% R.H. |
The maximum memory capacity is 3TB.
It supports a maximum of 24 3.5-inch SATA/SAS drives in the front.
The server supports a maximum of 8 standard PCIe X8 slots.
It offers 800W, 1300W, and 1600W 80 PLUS Platinum power modules.
