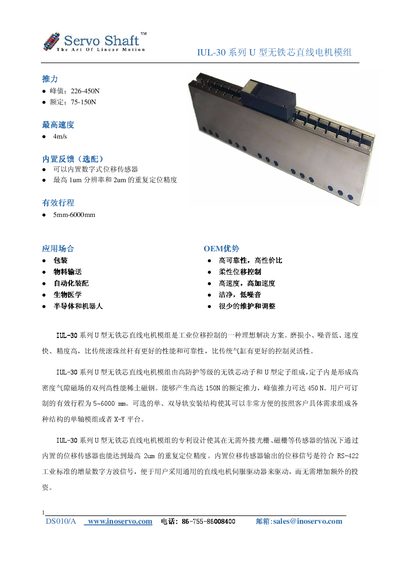

The IUL-30 series is a high‑performance coreless linear motor module with up to 450 N peak thrust and 4 m/s speed, suitable for material handling and…
The IUL-30 series U‑shaped coreless linear motor module provides high thrust, speed, acceleration and precision in a compact design. It features an integrated digital displacement sensor with up to 2 µm repeatability and 1 µm resolution, and outputs RS‑422 incremental digital pulses.
The module supports travel ranges from 5 mm to 6000 mm and can be configured with single or dual guide‑rail installations for single‑axis or X‑Y platforms. It is compatible with a range of motion controllers such as Copley, Elmo Motion, Servotronix and Mega‑Fabs drivers. This manual is written in Chinese.
| Peak thrust | 226‑450 N |
|---|---|
| Rated thrust | 75‑150 N |
| Maximum speed | 4 m/s |
| Travel range | 5 mm – 6000 mm |
| Built‑in sensor resolution | 1 µm (up to 2 µm repeatability) |
| Motor weight | 0.6 – 1.06 kg |
The peak thrust ranges from 226 N to 450 N.
It can reach a maximum speed of 4 m/s.
The effective travel range is from 5 mm up to 6000 mm.
The built‑in sensor offers a resolution of 1 µm and a repeatability of up to 2 µm.
