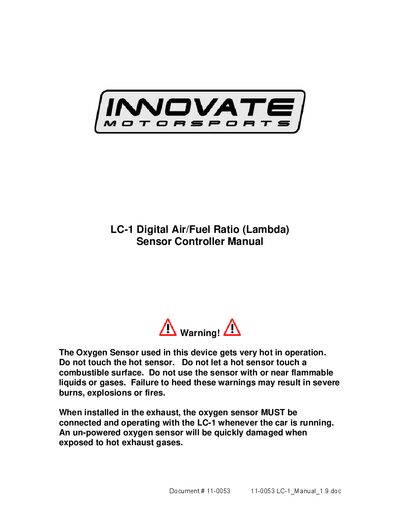

Innovate Motorsports LC-1 Sensor Controller User Manual

Installation, wiring, calibration and troubleshooting guide for the Innovate Motorsports LC-1 wide‑band sensor controller.

Brand: Innovate Motorsports
Category: Vehicle Accessories
Document type: User Manual
Language: English
Pages: 24
File format: PDF
File size: 199 KB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 256609A328AA50C6636A84100DA1E280
PDF: Innovate Motorsports LC-1 Sensor Controller User Manual PDF

About this manual

The LC-1 is a stand‑alone wideband controller that measures air‑fuel ratio (AFR) or Lambda for gasoline, diesel and alternative‑fuel engines. The manual covers mounting the sensor, wiring the controller to a vehicle’s electrical system, and connecting to ECUs or data loggers.

Key sections include step‑by‑step installation, free‑air and heater calibration procedures, programming of analog outputs, and detailed troubleshooting with error‑code tables. Safety warnings emphasize the high temperature of the oxygen sensor and proper grounding practices.

What's inside

Overview
Mounting and Wiring the LC‑1
First Time Use
Calibration
Remote Display and Recording
Programming the LC‑1
Tips, Tricks and Troubleshooting
Advanced Topics
Appendices (Cable Pinouts, LED Codes, Error Codes, Warranty)

Specifications

Analog Output 1 voltage range	1.1 V = 14 AFR, 0.1 V = 15 AFR
Analog Output 2 voltage range	0 V = 7.35 AFR, 5 V = 22.39 AFR
Recommended fuse size for power connection	5 A minimum

Frequently asked questions

What fuse size should be used for the LC‑1 power connection?

The power connection must be protected by a fuse of at least 5 A.
