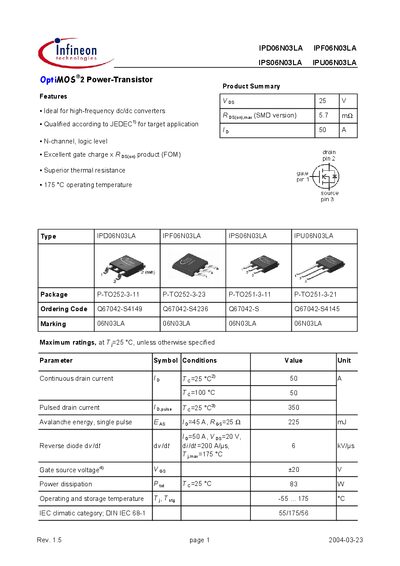

The Infineon Technologies datasheet provides specifications, electrical characteristics, thermal data, and package outlines for the IPD06N03LA, IPF06N03LA…
The OptiMOS®2 Power‑Transistor series includes four N‑channel, logic‑level devices (IPD06N03LA, IPF06N03LA, IPS06N03LA, IPU06N03LA) designed for high‑frequency DC/DC converters and other demanding applications. Key features are low gate charge·RDS(on) product, high current capability, and a wide operating temperature range.
The datasheet lists maximum ratings, electrical and thermal characteristics, dynamic behavior, and detailed package outlines. For further information, contact an Infineon Technologies office or representative as indicated on the last page.
| Continuous drain current (ID) at 25 °C | 50 A |
|---|---|
| Pulsed drain current (ID,pulse) at 25 °C | 350 A |
| On‑state resistance RDS(on) max (SMD version) | 5.7 mΩ |
| Thermal resistance, junction‑case (RthJC) | 1.8 K/W |
| Operating temperature range | -55 °C to 175 °C |
The maximum continuous drain current is 50 A at a junction temperature of 25 °C.
The devices are rated for operation up to 175 °C.
The IPD06N03LA uses the P‑TO252‑3‑11 package outline.
