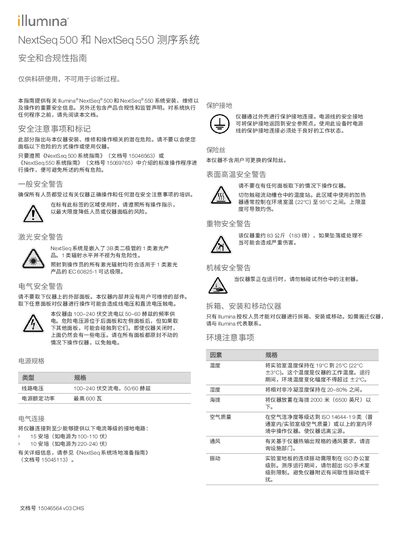

Safety and compliance guide for Illumina NextSeq500 and NextSeq550 sequencing systems, covering hazards, electrical specs, and regulatory statements.
This guide provides safety information for the Illumina NextSeq500 and NextSeq550 sequencing systems, including required precautions before installation, maintenance, and operation. It references the standard system manuals for normal operating procedures.
Key sections cover laser, electrical, mechanical and environmental safety, power specifications, grounding, and regulatory compliance. The document also lists required laboratory conditions such as temperature, humidity, altitude, air cleanliness and vibration limits. This manual is written in Chinese.
| Input voltage | 100–240 V AC, 50/60 Hz |
|---|---|
| Maximum power | 600 W |
| Current rating (100‑110 V) | 15 A |
| Current rating (220‑240 V) | 10 A |
| Weight | 83 kg (183 lb) |
| Operating temperature | 19‑25 °C (±3 °C) |
| Relative humidity | 20‑80 % non‑condensing |
| Maximum altitude | 2000 m (6500 ft) |
| Laser class | Class 1 (3B diode) |
| Grounding | Protective grounding via chassis |
Do not remove the external panel; internal components are not user‑serviceable and may expose line or DC voltage.
