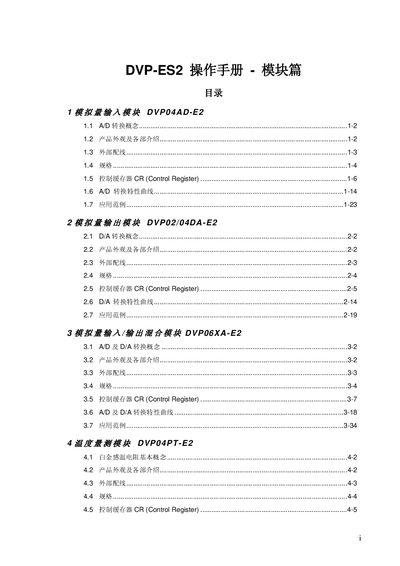

The iDVP ES2 operation manual details wiring, specifications, control registers and application examples for its analog I/O modules.
This manual covers the five iDVP‑ES2 modules: the analog input module DVP04AD‑E2, the analog output module DVP02/04DA‑E2, the mixed I/O module DVP06XA‑E2, and the temperature measurement modules DVP04PT‑E2 and DVP04TC‑E2. Each section provides an overview of the hardware, external wiring diagrams, electrical and functional specifications, control‑register descriptions, and sample applications.
The document also lists the common electrical requirements for all modules, such as a 24 VDC supply, power consumption limits, input ranges, resolution, isolation methods, and environmental operating limits. Control registers (CR) for configuring input modes, averaging, offsets, and limits are described in detail, along with example ladder‑logic programs for PLC integration. This manual is written in Chinese.
| Power supply voltage | 24 VDC (20.4 VDC ~ 28.8 VDC) |
|---|---|
| Maximum power consumption | 1 W per module |
| Analog voltage input range | ±10 V |
| Analog current input range | ±20 mA |
| Hardware resolution | 14 bits |
| Operating temperature range | 0 °C ~ 55 °C |
| Response time per channel | 400 µs × number of channels |
The modules operate from 0 °C to 55 °C.
The DVP04AD‑E2 module provides four analog input channels per unit.
The response time is 400 µs multiplied by the number of channels.
