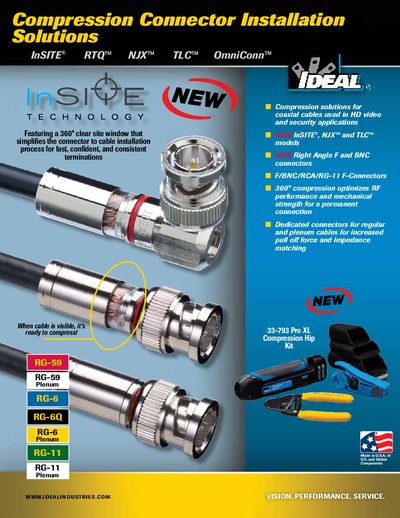

This guide explains how to install IDEAL Industries' InSITE®, NJX™, TLC™ and OmniConn™ compression connectors, tools, and cable preparation.
The document describes IDEAL Industries' range of compression connectors for coaxial cables used in HD video and security applications. It covers the InSITE®, NJX™, TLC™ and OmniConn™ families, highlighting features such as 360° clear windows, weather‑proof seals, and support for 23‑18 AWG solid center conductors.
Installation procedures, recommended tools (OmniSeal™ Pro XL, LinearX® series, PrepPRO® stripping tools) and cable‑preparation guidelines are detailed. Compatibility charts and part numbers help installers select the correct connector and tool for each cable type.
| Cable size compatibility | 23‑18 AWG solid center conductors |
|---|---|
| Compression method | 360° compression optimizes RF performance |
| Weatherproofing | RTQ™ compression sleeve provides weatherproof seal |
| Cable preparation | Standard 1/4" x 1/4" preparation |
All IDEAL compression connectors require a standard 1/4" × 1/4" cable preparation.
Yes, the RTQ™ compression sleeve gives each connector a weather‑proof seal at the cable entry point.
The 360° clear InSITE® window lets the installer see the folded braiding, confirming full insertion.
