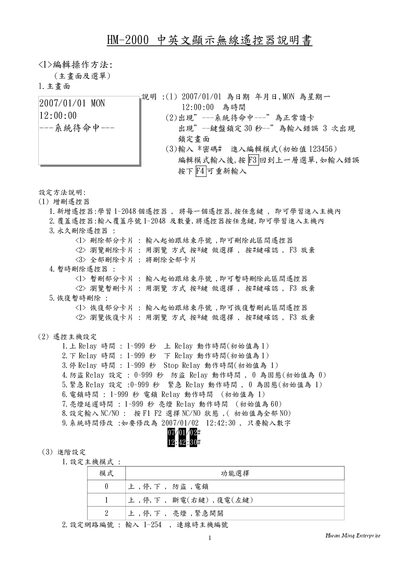

The Hwan Ming Enterprise HM-2000 wireless remote user manual provides operation instructions, configuration settings, and wiring details.
This manual explains how to operate the HM-2000 wireless remote, including editing functions, adding or deleting remote codes, and advanced configuration options such as relay timing and network settings. It also describes the user interface messages and password management.
The document includes detailed wiring diagrams for the AC power input, relay contacts, and RS‑485 communication ports, as well as instructions for restoring factory defaults and setting language display. This manual is written in Chinese.
| Maximum number of remote codes | 2048 |
|---|---|
| Relay operation time range | 1‑999 seconds |
| Network address range | 1‑254 |
| RS‑485 pin assignment | A (DATA+), B (DATA‑), GND |
| Power input voltage | 110 V ~ 220 V AC |
Enter *password#; the default password is 123456.
Select “Add remote”, then press any key while learning; up to 2048 remotes can be stored.
Choose Chinese or English in the language setting; currently only Chinese is supported.
