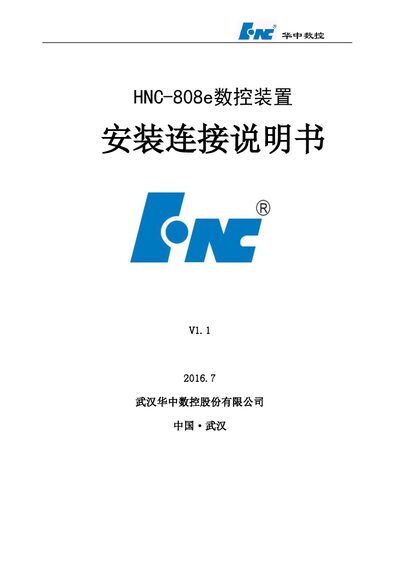

The Huazhong CNC HNC-808e installation and connection manual provides safety guidelines, wiring diagrams, and setup instructions for the CNC controller.
This manual introduces the HNC-808e CNC device, covering its features, safety precautions, and recommended installation procedures. It includes detailed wiring information, system options, and parameter settings to ensure proper operation.
The document is organized into chapters on pre‑use safety, connection and wiring, typical machine design examples for lathes and milling machines, and an appendix with interface definitions and parameter configuration details. This manual is written in Chinese.
| Maximum coordinated axes | 2 feed + 1 spindle (lathe) or 3 feed + 1 spindle (milling) |
|---|---|
| Display | 9‑inch LED color LCD |
| Interpolation period | 1 ms |
| Minimum input unit | 10⁻⁶ mm/deg/inch |
| RAM buffer | 1 GB |
| CF card support | Up to 2 GB |
| USB hot‑plug support | Yes |
| G‑code compatibility | International standard G‑code |
It can control up to 2 feed axes plus 1 spindle axis for a lathe, or 3 feed axes plus 1 spindle axis for a milling machine.
The controller uses a 9‑inch LED color LCD display.
The interpolation period is 1 ms.
