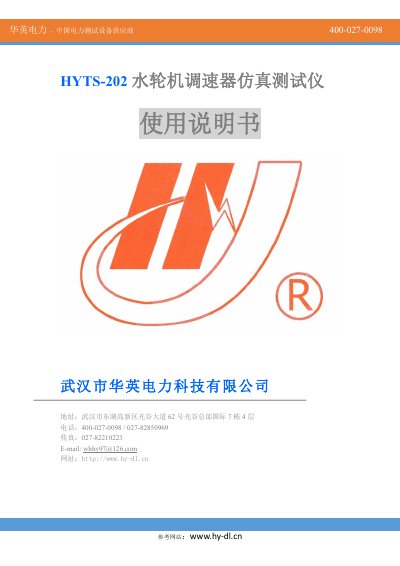

Huaying Power HYTS-202 Turbine Governor Simulator Tester User Manual

This manual covers the operation, settings, and testing procedures for the Huaying Power HYTS-202 Turbine Governor Simulator Tester used in hydroelectric…

Brand: Huaying Power
Document type: User Manual
Language: Chinese
Pages: 26
File format: PDF
File size: 1.1 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BF48B270FDE93776A952B913791E4E91
PDF: Huaying Power HYTS-202 Turbine Governor Simulator Tester User Manual PDF

About this manual

The Huaying Power HYTS-202 is a comprehensive test platform developed by Wuhan Huaying Electric Power Technology Co., Ltd. designed for detecting characteristics of hydraulic turbine governor systems and automatic synchronization systems. The instrument integrates five types of water turbine unit models (mixed-flow, axial-flow, impulse, tubular, and nonlinear) to simulate closed-loop systems without requiring connection to real units. This manual is written in Chinese.

What's inside

Introduction
Instrument Composition
Instrument Operation
Test Projects
Common Faults

Specifications

Sampling Frequency	4KHZ
Voltage Input Range (Low Voltage)	-10V~10V
Current Input Range	-20mA~20mA
Frequency Measurement Range	1HZ~200HZ
Screen Size	12.1 inch
Internal Storage	32G

Frequently asked questions

What types of turbine unit models are built into the HYTS-202?

The instrument integrates five different types: mixed-flow, axial-flow, impulse, tubular, and nonlinear models.

Can the instrument generate test reports automatically?

Yes, it can automatically generate WORD and Excel test reports with automatic curve identification.

What is the sampling error for voltage and current channels?

The full-scale sampling error is less than 0.2%.
