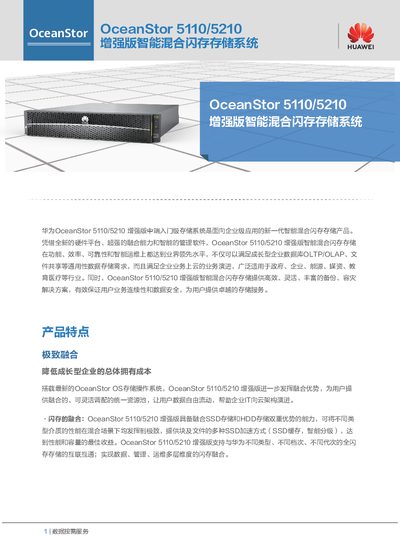

The Huawei OceanStor 5110/5210 Enhanced Edition is a mid‑range intelligent hybrid flash storage system offering high performance, flexible resource pooling…
Huawei OceanStor 5110/5210 Enhanced Edition is a mid‑range intelligent hybrid flash storage system designed for enterprise applications such as OLTP/OLAP databases and file sharing. It combines SSD and HDD storage, providing SSD caching, smart tiering and multiple acceleration methods to deliver high performance and capacity efficiency.
The system supports both SAN and NAS services, integrates heterogeneous storage arrays into a unified resource pool, and offers advanced data protection features like snapshots, cloning, integrated backup, remote replication, dual‑active and 3DC, achieving 99.9999% availability. It also includes intelligent operation management with remote monitoring, automated fault detection and capacity planning. This manual is written in Chinese.
| Maximum Controllers | 8 |
|---|---|
| Cache per Controller | 128 GB |
| Supported Front‑end Interfaces | 32 Gbps FC, 25 Gbps Ethernet (also 8/16/32 Gbps FC, 1/10/25 Gbps Ethernet) |
| Supported Back‑end Interface | 12 Gbps SAS 3.0 |
| Supported Protocols | FC, iSCSI, NFS, CIFS, HTTP, FTP |
| Maximum Disk Slots per Controller | 24 |
It includes snapshot, clone, integrated backup, remote replication, dual‑active and 3DC technologies, delivering 99.9999% availability.
The system can support up to eight controllers with RDMA interconnect and load‑balancing.
It supports 32 Gbps Fibre Channel and 25 Gbps Ethernet, as well as 8/16/32 Gbps FC and 1/10/25 Gbps Ethernet options.
