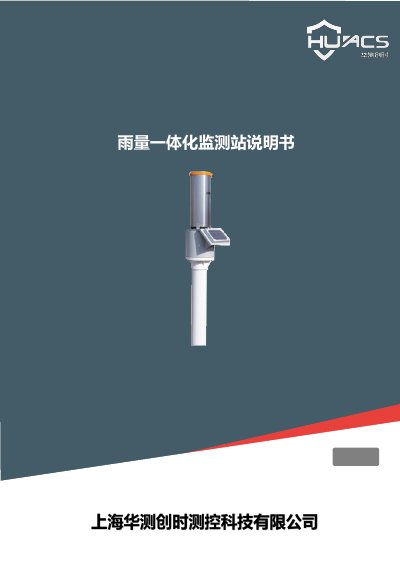

This manual describes the installation, operation, and technical specifications of the Huacecs HC-Y8080 rainfall integrated monitoring station for flood…
The document is a user manual for the Huacecs HC-Y8080 Rainfall Integrated Monitoring Station. It outlines the product's application in disaster warning systems such as mudslides and flash floods, highlighting its use of ZigBee, GPRS, and other wireless technologies for automated data transmission.
Key features include an integrated structure requiring no additional integration, a 32-bit embedded microprocessor, and support for multiple power management modes to ensure long-term operation in harsh outdoor environments. The device utilizes a capacitive rain gauge capable of measuring rainfall intensity up to 9mm/minute. This manual is written in Chinese.
| Rainfall Intensity Range | 9mm/minute |
|---|---|
| Resolution | 0.1mm, 0.2mm or 0.5mm selectable |
| Measurement Error | <±2% |
| Main Frequency Range | 32.768KHZ～32MHZ |
| Communication Rate | 9600bit/s |
| Power Supply | 10W/12V Monocrystalline Solar Panel / 50Ah / 5V Built-in Lithium Battery |
| Mean Time Between Failures (MTBF) | 1440/h |
| Operating Temperature Range | -30℃～+80℃ |
| Storage Capacity | 4MByts |
| Protection Rating | IP67 |
The device supports ZigBee, 433HZ, GPRS, BD communication terminals, and bridge microwave technology.
It can sustain operation for 60 days under no sunlight conditions while working in a low-power consumption mode.
The capacitive rain gauge can measure rainfall intensity up to 9mm per minute.
